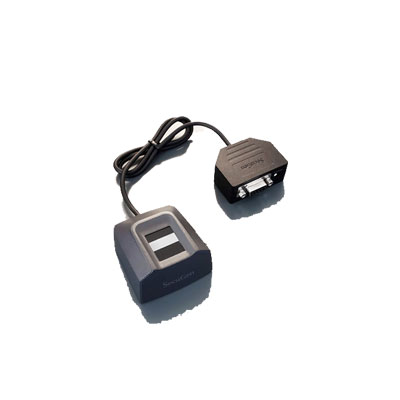

Unity 20 Serial is a low cost, fully programmable stand-alone fingerprint recognition system that scans, processes, and matches fingerprint data for identifying or verifying users. Featuring the industry’s most rugged fingerprint sensor, the Unity 20 Serial can securely capture, enroll, match, and store fingerprint data all in one device. Unity 20 Serial communicates via a 9-pin DB-9 connector and can be integrated into applications that need biometric authentication capability such as Point of Sale (POS) terminals, Time and Attendance tracking stations, and other devices where a serial connection is required.
Unity 20 Serial is a low cost, fully programmable stand-alone fingerprint recognition system that scans, processes, and matches fingerprint data for identifying or verifying users. Featuring the industry’s most rugged fingerprint sensor, the Unity 20 Serial can securely capture, enroll, match, and store fingerprint data all in one device. Unity 20 Serial communicates via a 9-pin DB-9 connector and can be integrated into applications that need biometric authentication capability such as Point of Sale (POS) terminals, Time and Attendance tracking stations, and other devices where a serial connection is required.
Unity 20 Serial is a finished system that supports RS-232 serial connectivity and is part of the Unity family of all-in-one, stand-alone fingerprint modules with complete biometric functionality built-in, designed to operate entirely without external host systems.
-
- FBI Certified (PIV, FIPS 201, Mobile ID FAP 20 Compliant)
- RS-232 serial connectivity with DB9 connector
- Rugged, high-performance, maintenance-free optical sensor resistant to scratches, impact, vibration and electrostatic shock
- Fast recognition and high quality imaging of difficult fingerprints (dry, wet, scarred) in challenging environments
- Fast and accurate verification
- Readily accessible for any finger
- Auto-On™ – automatic finger detection technology (when used with apps built with SecuGen SDKs)
- Smart Capture™ – self-adjusting scanning technology (when used with apps built with SecuGen SDKs)
- Device Recognition™ – device authentication technology (when used with apps built with SecuGen SDKs)
- Fingerprint template encryption (when using SecuGen Proprietary template format)
- Latent print rejection (does not accept prior fingerprints left behind on sensor)
- Rechargeable lithium ion battery and micro USB cable for charging
- Ultra-compact, lightweight and portable
- Integrated finger guide
- e-Government
- Banking
- e-Healthcare
- e-Purse & Loyalty
| Name (Product) | HU20-ASF-SR |
| Fingerprint Sensor (Type) | U20-ASF (contact) |
| Supported Fingerprint Templates | SecuGen Proprietary, ANSI INCITS 378-2004, and ISO/IEC 19794-2 formats |
| Image Resolution | 500 DPI |
| Algorithm | NIST/MINEX compliant Template Generator and Template Matcher |
| Platen Size | 18.2 mm x 23.1 mm |
| Image Gray Scale | 256 levels (8-bit) |
| Effective Sensing Area | 15.24 mm x 20.32 mm |
| Other Features | Auto-On™, Smart Capture™, Device Recognition™, 360 Degree Fingerprint Rotation |
| Certification | FBI, PIV FAP 20, STQC |
| Operating Temperature | -20° ~ 65°C |
| External Connection | 9-pin DB-9 (DE-9) female connector |
| Dimensions |
|
| Weight | 92 g |
| External Power (NOT INCLUDED) |
|
